Detailed introduction

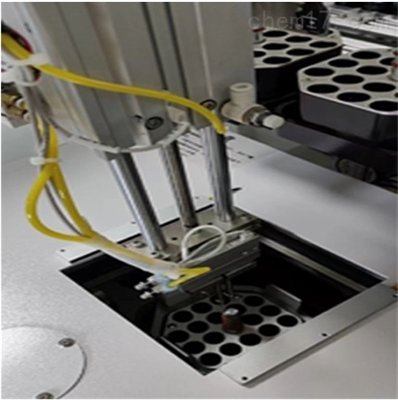

The floor-type large-capacity low-speed refrigerated centrifuge is specially designed for customers with large capacity needs, and the centrifuge module requires a mechanical arm to be used in the production line

Overall characteristics

◆ Product features:

Touch panel, microcomputer control, large screen liquid display, set parameters and operation parameters display at the same time; Chinese/English operating system, speed, centrifugal force, temperature, time can be freely set; Automatic calculation of RCF value, users can program 40 programs. You can modify the parameters during operation. Up and down speed time 9, can be free to stop, centrifugal effect to achieve the best, display speed rise, fall curve, temperature curve.

◆ Long service life:

Imported environmental protection fluoride-free refrigeration unit (refrigerant R404a), unique cooling and cooling system, cooling and heating double circuit temperature control, centrifugal effect to achieve the best; High torque variable frequency motor drives directly, no carbon powder pollution, prolonging service life.

◆ Safe use:

With overtemperature, overspeed, electronic door lock, imbalance and other safety protection functions, with three layers of protective cover, safe and reliable to ensure personal and machine safety.

◆ Large capacity:

It can separate 400ml triple or quadruple bag 12 at a time, which is the most centrifuge for separating blood bags in China.

With 2400ml centrifugal bottle, 14400ml sample can be separated at one time. 6x2x1000ml horizontal rotor to meet the needs of biopharmaceutical.

main technical parameters

Model	JW-1066R(floor model)
Max Speed	8000rpm
Max RCF	12166xg
Max Capacity	2400mlx6
Peed Accuracy	±10rpm
Timer Rang	1min~23h59min
Temperature	-20℃~40℃
Temp Accuracy	±1℃
noise	≤65dB(A)
Power	AC220V 50Hz 50A
Diameter of centrifugal chamber	φ700mm
Net Weight	590Kg
Overall Dimensions 【 Length x width x height 】	975x860x1180mm

Rotor configuration
