Current location：Home > Product Center >gel imaging system > Gel-docx Gel imaging system

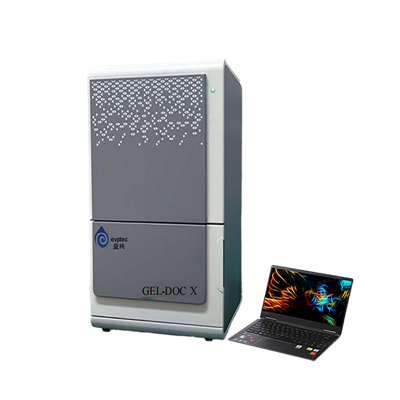

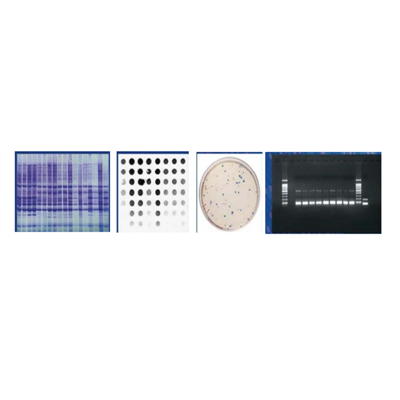

Describe：Gel-docx Gel imaging system is an easy-to-use, high-performance real-time gel imaging system. The automatic control of the instrument is realized by Gel-Pro software. Mainly used in EB, GoldView GeneFinder, SYBRGreen staining DNA gel, such as TLC plate, plastic, silver stain test dye glue, colony, bacteriostatic circle, MPP, spot hybridization, film and so on the film and analysis of the sample.
Model No.：Gel-DocX500country of origin：ChinaWarranty period：After sales service：onlineUpdate time：2025-2-8Visits：552Product catalog
Product CategoryRelated Articles
Related ArticlesDetailed introduction
Instrument characteristics：
1. High-quality professional digital camera: 5 million pixels, with high resolution, high sensitivity, low noise and other advantages. The high-throughput zoom lens and single-LSB interface combine perfectly for clear image acquisition.
2. f/1.2, C-bayonet lens controlled by motor. Aperture size (ir s), lens zoom and focus can be adjusted by mouse control through instrument panel or computer software. Responsive, comfortable and convenient to use.
3. Open door design camera obscura, drawer type light box, easy to use, prevent pollution. R-type box door opening mode, strong tightness of the camera obscura, maximize the small pollution area, safety; Corrosion-resistant camera obscura, anti-static and anti-interference, increase security; Uv workbench with micro switch intelligent start and power off protection function, open the door automatically power off, close the door automatically start, the operation of the machine is safer.
4. The UV illuminated table can be used as a glue cutting instrument. The UV lamp can be automatically turned on when the UV illuminated table is pulled to the outermost part. 5. Computer software controls the light source on and off.
6. Computer software controls focus, focus and aperture size.
7. Configure a variety of light sources: projection UV, side white light, transmission white light (white screen).
The transmitted UV is mainly applied to fluorescent samples such as EB stained DNA glue, SYPRO Orange stained DNA,Radiant Red stained DNA
RNA gel, etc.; The side white light source is mainly used in opaque samples such as photos, paper, hybrid film, etc. The transmitted white light is mainly suitable for various dye morning protein gels such as test dye, silver dye and so on. Uv light source is optional to meet the special needs of users, the three light source wavelengths are: 254nm, 302nm, 365nm. Maximum adhesive area: 25× 21cm, suitable for various gel sizes.
8. There are 3 kinds of UV light source optional to meet the special needs of users, the three light source wavelengths are: 254nm, 302nm, 365nm.
9. Maximum transmission area: 250×210mm, suitable for various sizes of gel.
10. Shooting software: friendly interface, sequential operation, one-click imaging, simple and fast
11. High definition 5 megapixel camera, high quality image quality, remote zoom, intelligent control.
12.6x optical autozoom lens; Uv filter: EB special ultra-multi-layer coating filter (M49×0.75)
Modeel | Gel-DocX500 |
CCD Pixels | 5 million resolution |
Lens | Professional 6x optical zoom lens |
Pixel size | 2.2μm x2.2μm |
Pixel density | 16 bit |
Gray value | 65536 |
Time of exposure | 1-1500ms |
Lighting mode | Transmit ultraviolet light, transmit white light, reflect white light, reflect ultraviolet light |
Transmitted light source | Standard 302nm and white light (white light converter board) |
Reflected light source | White light、254nm、365nm |
System compatibility | Win7/Win8/Win10/win11 exc. |
Filter | Gel special filter 590nm, optional 535nm, 605nm, 699nm |
Transmitted area | 210×250mm |
External dimension | (L×W×H):420×340×720mm |
Weight | 20Kg |
