Detailed introduction

Product characteristics

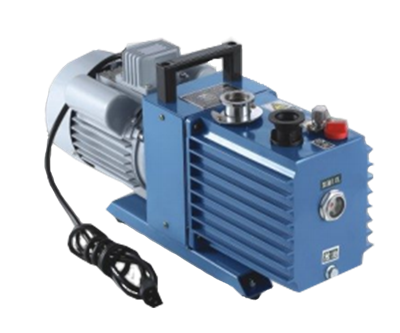

This series of pumps is the basic equipment used to remove gas from sealed containers. It can be used alone, can also be used for booster pump, diffusion pump, molecular pump pump, maintenance pump, bowl pump pre-pumping pump, can be used for vacuum drying, freeze drying, vacuum degassing, vacuum packaging, vacuum adsorption, vacuum forming, coating, food packaging, printing, sputtering, vacuum casting, instruments, instruments, refrigerators, air conditioning lines and laboratories and other vacuum operations and supporting Use.

◆ For thorough low noise design and precision processing, so as to achieve low noise

◆ Specially designed gas ballast valve is formulated to prevent pump oil from mixing water and prolong the service time of pump oil

◆ Adopt international similar product design, small size, light weight, low noise, easy to start

◆ With automatic double anti-oil safety device, no oil return

◆ Can be equipped with small diameter adapter, KF interface, flange interface

technical specification

model		VP-162C
pumping speed L/S(m3/h)		2（7.2）
Limiting pressure (Pa)	partial pressure	≤6×10-2
	full pressure	≤1.33
rotate speed(r/min)		1400
working voltage(V)		220/380
motor power(Kw)		0.37
Inlet diameter (outside diameter)（mm）		Φ30
		KF-25
noise(dBA)		66
Oil capacity (L)		0.8
Pump oil temperature rise（℃）		≯45
boundary dimension(mm)		480×140×250
Gross/net weight(Kg)		22/20
