Detailed introduction

【 Product Advantages and features 】

1. Dual temperature zone digester, which can digest two detection items at the same time, greatly reducing the experiment time;

2. Display: 7 inch LCD screen, easy to operate;

3. Detection method: tube colorimetric: prefabricated consumables, open and use, convenient, time-saving and labor-saving;

Dish comparison: large packaging consumables, saving costs;

Electrochemistry: A variety of digital sensors can be selected for faster and more accurate results than analog signal sensors;

4. Data storage and upload: The test data can be stored in mass, or uploaded through RS232 interface, and the data storage and processing methods are flexible and diverse;

5. Optical path system: the use of patent certified optical fiber splitting system to ensure the accuracy of the detection accuracy;

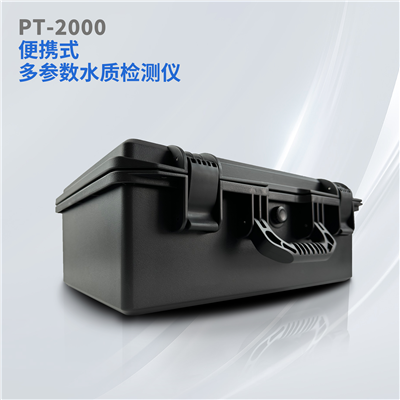

6. Portability: Light and flexible, standard with portable suitcase, suitable for field testing;

7. Detection items: can realize the free switching between electrochemistry, photometric chemistry and digester;

8. Sensor: 485 digital signal sensor, compared with analog signal sensor measurement results are more stable and faster;

9. Battery: with its own power display, real-time control of the use of the battery, and can achieve lithium battery + external power supply;

【 Technical parameters 】

1. Measurement mode: concentration value, transmittance %, absorbance value Abs;

2. Display: 7-inch LCD color display;

3. Wavelength configuration: 400 ~ 800nm,±1nm;

4. Wavelength selection: automatic;

5. Sample device: tube colorimetric, dish colorimetric, electrochemical

6. Photometric chemical test items: preset COD, ammonia nitrogen, total phosphorus, total nitrogen, chroma, turbidity and other more than 70 water quality photometric chemical test indicators;

7. Electrochemical detection items: Preset PH, dissolved oxygen, ORP, conductivity, suspended matter and other electrochemical water quality detection indicators (need to select sensors);

8. Storage: can store 5 million detection data, and can be freely called to view;

9. Elimination: double temperature zone digester, can process 10 reagents in batches. A single digester can batch 5 samples;

10. Automatic calibration: The instrument has automatic calibration function;

11. Power supply: built-in 12V/20AH lithium battery, external 12V/15A adapter;

12. Charger: 12.6V/2A lithium battery charger;

13. Light source: tungsten lamp;

14. Printing: built-in printing function;

15. Communication method: RS232 interface, the measurement results can be uploaded to the PC software;

16. Sensor: 485 digital signal sensor;
