Detailed introduction

Product Characteristics

● Maintenance-free AC variable frequency motor with high accuracy and low noise;

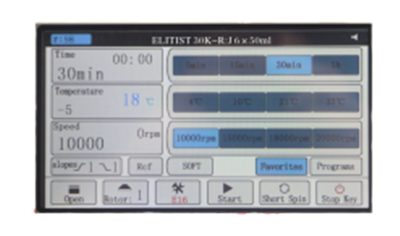

● A 7-inch high-definition color touch screen can store up to 100 sets of commonly used programs, and can simultaneously display speed (centrifugal force), time, temperature inside the chamber, lifting gear, rotor number, fault code, etc. Parameters such as speed, time, and temperature can be modified during the centrifugal process;

●Rotor with self-locking function, safe and reliable.

●Automatic rotor identification system, the limit speed of the corresponding rotor is limited to prevent over speed.

●Motorized lid locking device for optimum running performance.

●10 sets of acceleration and deceleration preset curves;

●Reliable anti friction system, effectively reducing wind resistance, and achieving maximum speed faster;

●Separate "short spin" key for different centrifugal needs.;

●SOFT function for gentle start and braking;

●The motor is equipped with an unbalance protection mechanism, which automatically stops the motor after exceeding the set unbalance value.

●Constant speed timing function: Countdown after reaching the predetermined speed to ensure centrifugal effect;

●Temperature range: -10 "C to 40 "C. Intelligent standby cooling ensures that the temperature of sensitive samples is reliably maintained at around 4°C before and after centrifugation, even at maximum speed.

●Widely used in fields such as pharmaceuticals, biological products, and central blood stations.

Technical Data

Model	ELITIST 26K-R ELITIST 30K-R
Max Speed	26000rpm 31000rpm
Max RCF	80254xg 106848xg
Max Volume	6×1000ml
Timing range	0-99h59min or HOLD
RPM accuracy	±50rpm
Dimension(L×W×H)	790×923×920mm
Weight (without rotor)	about 270kg
Noise Levels	≤62dB
Temp	-10℃~+40℃
Power	220V/50Hz 5kW

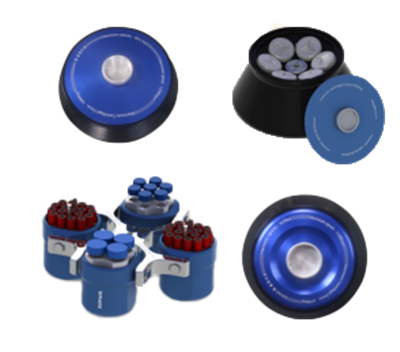

Rotor

Models		ELITIST 26K-R		ELITIST 30K-R
Rotor		Max Speed（rpm）	Max RCF(xg)	Max Speed（rpm）	Max RCF(xg)
1.	8×50ml ANGLE ROTOR (titanium alloy)	26000	80254	30000	106848
2.	8×50ml ANGLE ROTOR	25000	75620	25000	75620
3.	24×15ml ANGLE ROTOR	25000	74200	25000	74200
4.	6×50ml ANGLE ROTOR (titanium alloy)	/	/	31000	103326
5.	48×1.5/2.2ml ANGLE ROTOR	22000	52524	22000	52524
6.	18×10ml ANGLE ROTOR	21000	49800	21000	49800
7.	10×100ml ANGLE ROTOR	18000	47900	18000	47900
8.	6×100ml ANGLE ROTOR	16000	33123	16000	33123
9.	12×50ml ANGLE ROTOR	15000	31991	15000	31991
10.	8×15ml ANGLE ROTOR (pointed bottom)	15000	25956	15000	25956
11.	6×250ml ANGLE ROTOR	13500	30300	13500	30300
12.	12×50ml ANGLE ROTOR (pointed bottom)	12000	23310	12000	23310
13.	6×500 ANGLE ROTOR	10000	17248	10000	17248
14.	6×1000ml ANGLE ROTOR	8000	14766	8000	14766
15.	4×1000ml ANGLE ROTOR	9000	17054	9000	17054
16.	20×50ml Adapter	9000	10823	9000	10823
17.	36×15ml Adapter	9000	11253	9000	11253
18.	4×750ml Horizontal rotor	4200	3060	4200	3060
