Describe：
Model No.：JW-1042R country of origin：ChinaWarranty period：1 YearAfter sales service：Online SupportUpdate time：2024-1-18Visits：330Product catalog
Product CategoryRelated Articles
Related ArticlesDetailed introduction
Large screen true color LCD, full touch screen operation interface; microcomputer control, brushless AC frequency conversion motor drive, high speed accuracy, low noise; programmable operation, a variety of lifting speed options; can be set independently of the centrifugal force, rotational speed and the same screen display; with DCT [Differential Centrifugation Technology]. "DCT [Differential Centrifugation Technology] application technology. Widely used in: teaching, scientific research, biochemical products, medical testing, food safety, agricultural testing, animal husbandry and aquatic testing, microbiology, molecular chemistry, environmental protection, quality control and other industries.
Features of the whole machine:
◆Microcomputer control, large screen true color LCD, full touch screen operation interface; directly set: work program, centrifugal force, speed, centrifugal time, temperature, lift speed and rotor type LCD display with the screen.
◆ Carbonless brush AC frequency conversion motor drive, adopting special drive module to ensure the reliability of the circuit.
◆Double door locking system, automatic door locking when starting to ensure the safety of operation.
◆20 kinds of working program choices, users can freely program and call their set working parameters, which is convenient to use and improves working efficiency.
◆15 kinds of acceleration gear/15 kinds of deceleration gear selection, users can set one group of lifting speed according to the sample demand.
◆There are two kinds of functions: at set rpm and start rpm, and short spin function.
◆Differential centrifugation: 5 differential centrifugation programs are reserved, and users can set them according to their needs.
◆Double-layer steel structure, stainless steel centrifugal chamber, to avoid corrosive substances erosion.
◆Automatic balancing, unbalanced protection; alarm signal prompts when there is an error or unbalanced, and automatic shutdown.
◆ The parameters can be changed at will during operation without stopping the machine.
◆The fastest lifting time≤25s
◆ SOFT has a soft brake function, which can effectively prevent sample resuspension and protect sensitive samples; multi-level damping shock absorption design to ensure sample centrifugal effect
◆Countdown function: countdown in seconds, real-time display of the remaining working time.
◆Condensate drain holes in the centrifugal chamber prevent water from accumulating in the chamber.
◆ "Standby Cooling" function: in the standby state can be continuously pre-cooled to the set temperature
◆Automatic standby function: the compressor will automatically standby when it comes down to the set temperature, which reduces energy consumption and prolongs the life of the compressor.
◆"Fast Cool/Quick Lock" fast cooling function, from room temperature 21℃ to biological zero degree 4℃ in ≤5 minutes.
◆Imported compressor, fluorine-free refrigeration
◆Customized 485 communication interface, remote control [optional].
configuration:

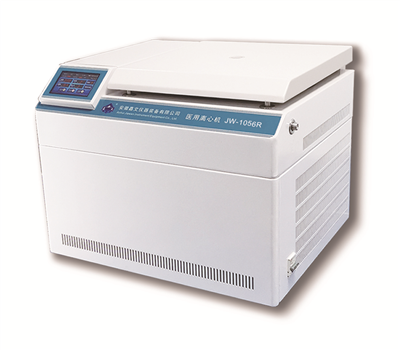

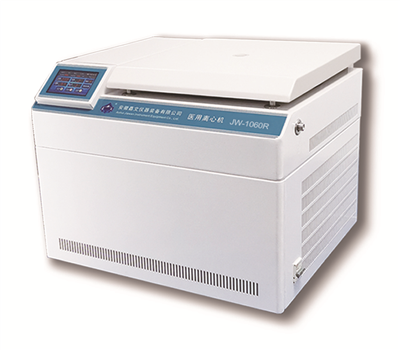

Model | JW-1042R( | JW-1056R（vehicle） | JW-1060R |
Max Speed | 6000rpm | 6000rpm | 6000rpm |
Max RC | 5502xg | 5502xg | 5502xg |
Capacity | 300mlx4 | 100mlx4 | 5mlx48 |
Speed accuracy (rpm) | ±10 | ||
Timer range | 1s~99h59min59s/point(instantaneous)centrifugation | ||
Temperature range | -20°C~40°C | ||
Temperature accuracy | ±1℃ | ||
Noise | ≤60dB | ≤56dB | ≤60dB |
Power supply | AC220V 50Hz 15A | AC220V 50Hz 15A | AC220V 50Hz 15A |
Power | 1500W | 1500W | 1500W |
Weight | 95Kg | 95Kg | 95Kg |
Overall dimensions [L x W x H] | 570x615x504mm | 510x555x488mm | 570x615x504mm |
Rotor configuration:
Model Rotor | JW-1042R | JW-1056R(vehicle) | JW-1060R |
NO1： Horizontal rotor | 300mlx4 4500rpm 3645xg | 50mIx4 5000rpm 3913xg | 5mIx32 4500rpm 3645xg |
Adapter:250mlx4 100mlx4 50mlx12/10mlx40 15mlX20 3/5/7mlx56 5mIx76[Release the tube] | Adapter:100mIx4 50mlx8 5/7ml x32 10/15mlx24[sharp bottomed/Urine sediment pipe] | ||
NO2： Horizontal rotor | 100mlx8 4500rpm 3645xg | 100mlx4 5000rpm 3913xg | 5/7mIx404500rpm 3645xg |
Adapter:100mlx8 50mlx8 10ml x32 | Adapter:100mIx4 50mlx8 5/7ml x32 10/15mlx24[sharp bottomed/Urine sediment pipe] | ||
NO3： Horizontal rotor | / | 5/10mIx12 5000rpm 3913xg | 5mlx32 4500rpm 3645xg with cap off |
NO4： Horizontal rotor | / | / | 5/7mlx48 4500rpm 3645xg vacuum tube |
NO5： Low speed angular rotor | 50mlx6 6000rpm 5502xg | 5mIx12 6000rpm 3783xg Cryogenic Vials | 50mlx6 6000rpm 5502xg |
NO6： Low speed angular rotor | / | 10/15mlx12 6000rpm 5502xg | / |
NO7： Low speed angular rotor | / | 5/15mlx24 5000rpm 3745xg | / |
NO8： Mold reaction plate rotor | 96holesx2x25000rpm 3530xg | / | / |
