Describe：
Model No.：JW-1048Rcountry of origin：ChinaWarranty period：1 YearAfter sales service：Online SupportUpdate time：2024-1-18Visits：273Product catalog
Product CategoryRelated Articles
Related ArticlesDetailed introduction
Large screen true color LCD, full touch screen operation interface; microcomputer control, brushless AC frequency conversion motor drive, high speed accuracy, low noise; programmable operation, a variety of lifting speed options; can be set independently of the centrifugal force, rotational speed and the same screen display; with DCT [Differential Centrifugation Technology]. "DCT [Differential Centrifugation Technology] application technology. Widely used in: teaching, scientific research, biochemical products, medical testing, food safety, agricultural testing, animal husbandry and aquatic testing, microbiology, molecular chemistry, environmental protection, quality control and other industries.
Features of the whole machine:
◆Microcomputer control, large screen true color LCD, full touch screen operation interface; directly set: work program, centrifugal force, speed, centrifugal time, temperature, lift speed and rotor type LCD display with the screen.
◆ Carbonless brush AC frequency conversion motor drive, adopting special drive module to ensure the reliability of the circuit.
◆Double door locking system, automatic door locking when starting to ensure the safety of operation.
◆20 kinds of working program choices, users can freely program and call their set working parameters, which is convenient to use and improves working efficiency.
◆15 kinds of acceleration gear/15 kinds of deceleration gear selection, users can set one group of lifting speed according to the sample demand.
◆There are two kinds of functions: at set rpm and start rpm, and short spin function.
◆Differential centrifugation: 5 differential centrifugation programs are reserved, and users can set them according to their needs.
◆Double-layer steel structure, stainless steel centrifugal chamber, to avoid corrosive substances erosion.
◆Automatic balancing, unbalanced protection; alarm signal prompts when there is an error or unbalanced, and automatic shutdown.
◆ The parameters can be changed at will during operation without stopping the machine.
◆The fastest lifting time≤25s
◆ SOFT has a soft brake function, which can effectively prevent sample resuspension and protect sensitive samples; multi-level damping shock absorption design to ensure sample centrifugal effect
◆Countdown function: countdown in seconds, real-time display of the remaining working time.
◆Condensate drain holes in the centrifugal chamber prevent water from accumulating in the chamber.
◆ "Standby Cooling" function: in the standby state can be continuously pre-cooled to the set temperature
◆Automatic standby function: the compressor will automatically standby when it comes down to the set temperature, which reduces energy consumption and prolongs the life of the compressor.
◆"Fast Cool/Quick Lock" fast cooling function, from room temperature 21℃ to biological zero degree 4℃ in ≤5 minutes.
◆Imported compressor, fluorine-free refrigeration
◆Customized 485 communication interface, remote control [optional].

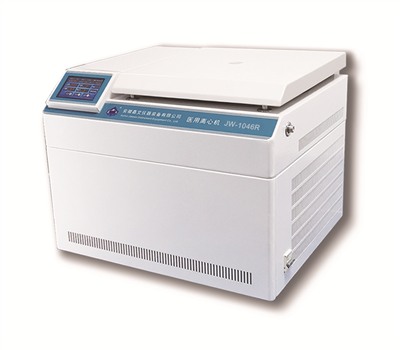

JW-1046R/1048R configuration
Model | JW-1046R/1048R | ||
Max Speed | 6000rpm | Support power | AC220V 50Hz 15A |
Max. Rcf | 5502xg | Gross weight | 108Kg |
Capacity | 5mlx120 | total noise of centrifuge | ≤62dB |
Timer range | 1min～99min | Power | 1800W |
Temperature setting range | -20℃～40℃ | Overall Size(W*D*H) | 750x590x890mm |
Temperature accuracy | ±1℃ | Speed accuracy | ±10rpm |
JW-1046R/1048R Rotor configuration
Model rotor | JW-1046R | JW-1048R |
NO1： Horizontal rotor | 750mIx4 4200rpm 3727xg | 5mlx120 4200rpm 3747xg |
Adapter :500mlx4 250mlx4 250mlx4 100mlx12 50mlx20 50mlx28 [Round base] 15mll/20mlx56 10mlx 76 3/5/7mlx96 5mlx148 | Adapte:3/5/7mlx120【Adapter】 | |
NO2： Uncapped horizontal rotor | 5mlx96 4200rpm 3727xg | 5mlx120 4200rpm 3747xg |
Adapter: 3/5/7mlx96 | Adapter:3/5/7mlx120 | |
NO3：pollution prevention Horizontal rotor | 750mlx4 4200rpm 3727xg | / |
Adapter reference:NO1 NO2 Corning tube excepted | ||
NO4： Horizontal rotor honeycomb hanging cup | 5mlx148 4200rpm 3648xg | / |
NO5： Low speed angular rotor | 50mlx6 6000rpm 5502xg | 50mlx6 6000rpm 5502xg |
NO6： Mold reaction plate | 96holesx2 5000rpm 3530xg 96holesx2x2 5000rpm 3530xg | 96holesx2 5000rpm 3530xg 96holesx2x2 5000rpm 3530xg |
NO7： Mold reaction plate | 96holesx4 4000rpm 3667xg 96holesx4x2 4000rpm 3667xg | 96holesx4 4000rpm 3667xg 96holesx4x2 4000rpm 3667xg |
