Detailed introduction

Product characteristics ：

This series of products is specially designed for the storage of biological samples in ampere mode, especially suitable for medical and biological scientific research fields. The characteristics of large storage capacity, small occupied space and low liquid nitrogen consumption make them the most economical choice among similar products.

● Lockable, easy to maintain the lock cover;

● Multi-layer square lift, sample storage capacity is larger;

● Square plastic box or card box, designed for ampere storage;

● Equipped with a special transport vehicle, easy to move indoors;

● Can be equipped with liquid level ruler, can easily measure the liquid nitrogen storage in the container;

● Liquid nitrogen level monitor can be selected according to user requirements. When the temperature exceeds the control range, sound alarm is made to ensure the safety of stored samples;

● Material and structure: aluminum alloy outer surface, provide production process regulations;

● Three years standard maintenance, five years vacuum warranty.

CryoSystemTech type specification	10	30	35	47	50	65	95	115	120	4000	6000
Tank
geometric volume(L)	10	30	35	47	50	65	95	115	120	145	175
Tank calibermm	125	125	125	127	125	216	216	216	216	216	216
Static evaporation of liquid nitrogen(L/D)	0.42	0.33	0.36	0.45	0.45	0.89	0.95	0.95	0.95	0.95	0.95
Static liquid nitrogen storage life（d）	24	90	97	105	110	73	100	121	126	152	184
Total tank height(mm)	300	450	450	498	498	761	802	952	952	1010	1072
Outer diameter of tank9(mm)	581	702	735	709	815	678	678	678	678	678	678
Empty weight of tank (excluding bucket)(kg)	7.6	16.72	18.6	20.5	21.5	41	47	50.5	50.5	53.9	57.5
Empty weight of tank (incolude bucket)(kg)	8.22	20.46	23.04	23.5	26.63	43.7	50.2	70.4	70.4	74.7	78.1
Packed weight(kg)				28.8
package size(mm)			495×495×825	535×535×765		800×800×920	800×800×980	800×800×1120	800×800×1120	800×800×1180	800×800×1220
Storage volume
2mlQuantity of frozen storage tube(ea)	100	600	750	750	900	2400	3000	3600	3600	4800	6000
5×5 Number of square barrels(ea)	1	6	6	6	6
10×10Number of square barrels(ea)						6	6	6	6	6	6
The number of square buckets	4	4	5	5	6	4	5	6	6	8	10
5×52ml Size of freezer box(mm)	76×76	76×76	76×76	76×76	76×76
10×102ml Size of freezer box(mm)					82×84	134×134	134×134	134×134	134×134	134×134	134×134
5×52ml Size of freezer shelf(mm)	82×84	82×84	82×84	82×84
10×102ml Size of freezer shelf(mm)						142×144	142×144	142×144	142×144	142×144	142×144
Number of barrels hauled(25ml单个)ea		18	18	18	18	30	30	30	30	30	30
Number of frozen shelves(ea)		2	2	2	3	2	2	3	3	4	5
Fenwall(ea)		36	36	36	54	60	60	90	90	120	150
Number of buckets (more than 25ml)(ea)		7	7	7	7	7	7	7	7	7	7
Number of frozen shelves(ea)		2	2	2	3	2	2	3	3	4	5
Number of frozen boxes(ea)		4	4	4	4	10	10	10	10	10	10
Fenwall(ea)		56	56	56	84	140	140	210	210	280	350
Number of buckets (more than 50ml)(ea)							30	30	30	30
Number of frozen boxes(ea)							2	3	3	4
Fenwall(ea)							60	90	90	120

Product consulting

Message box

Product：
Message content：
Your unit：
Your name：
Contact number：
Common mailbox：
Detailed address：
Verification Code：

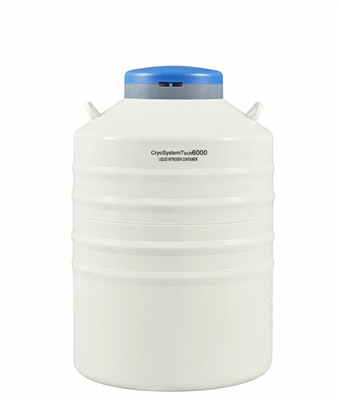

CryoSystemTech 4000/6000
